Shoen | 4 Beds · 2 Baths · 1896 SqFt
The Shoen is on Sale! |
Was $131,175 | NOW: $103,508!
The mobile home model Shoen has 4 Beds and 2 Baths. This 1896 square foot Double Wide HUD Manufactured Homes is available for delivery in
Arizona, Utah, Nevada, New Mexico & Colorado. *Not available for shipment to California.
Shoen 3D Floor Plan
Shoen Virtual Tour

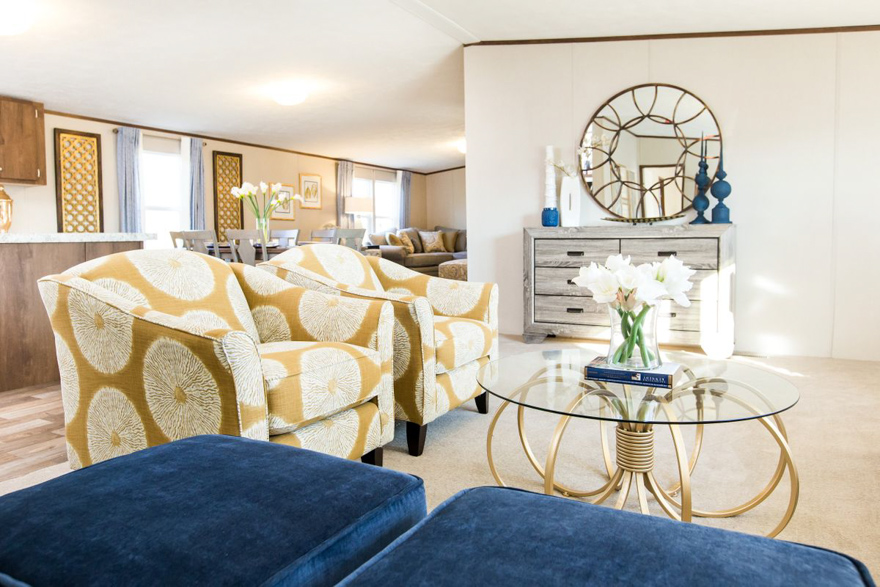

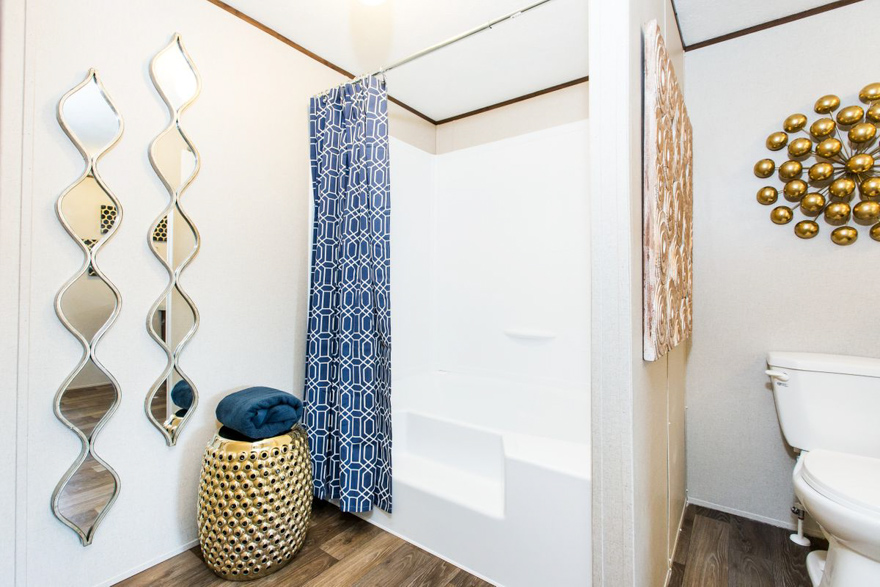

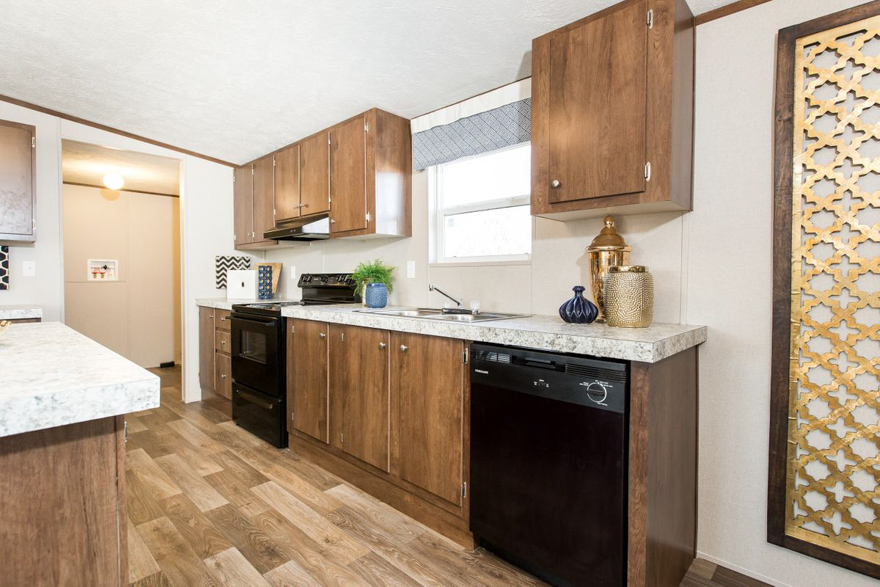

Shoen Photo Gallery
*Photos may reflect non-standard, upgraded items
Ask your housing consultant about the other great features that come standard on the Shoen HUD Manufactured Homes or click the links below to view Clayton Color Selections, Upgrades & Options, and Other Floor Plans!
Shoen Price Request
The Home Outlet
1-800-965-2987
Standard Features
The Shoen is part of the TRU Homes Doublewides Series
GENERAL:
- HUD Code
- 20 lb. Roof Load Std., 30 psf optional
- Wind Zone I Standard (Wind Zone 2 optional)
- Thermal Zone 3 Standard
FRAME:
- I Beam: 12”, 10” or 8” model specific
- Outriggers: 96” spacing, recessed 10” (approx)
- Crossmembers: 96” spacing
- Header (Front/Rear): Flush, not recessed
- Axles: Spread (no equalizers) overslung mounted
- Brake Axles: Two, except where more are mandatory by state DOT
- Hitch Beam: 10” or 8” detatchable hitch (model specific)
FLOOR:
- Joists: 2×6 / 16” O.C.
- Linoleum throughout: TRU Select
- Decking: 19/32” 4×8 OSB T&G
EXTERIOR (7’-0” SIDEWALLS):
- Smart Panel: Standard
- House Wrap: ThermoPly Structural Sheathing
- Exterior Faucet
WINDOWS AND DOORS:
- Front door: In Swing Door w/ Storm
- Rear door: Out swing 34” x 76” Blank, no storm
- Interior doors: 6 Panel
- Windows: Thermal Pane Low E Vinyl, size per prints
ROOF / CEILING:
- Shingles: 25 Yr. 3 Tab
- Trusses: 24” O.C. spacing
- Sheathing: 7/16” OSB
- Insulation: Blown Fiberglass
- Ceiling: Textured
- Ceiling Slope: Vault/Flat Ceiling
- Attic Ventilation: Static Vents
PLUMBING:
- Water Heater: 40 gallon electric
- Kitchen Sink: Stainless Steel, dbl bowl
- Pfister Metal Faucets
- Master Bath: 54” Garden Tub ABS Plastic Tub
- Hall Bath: 54” ABS Plastic Tub
- Whole House Water Shut Off
- Pex Plumbing with Oeitiker Plumbing Clamps
HVAC:
- Heat: Electric Furnace (gas optional)
- Ductwork: Metal duct
- Thermostat: Ecobee Smart Thermostat
ELECTRICAL:
- Load Center: 200 amp
- (100 amp allowed when gas option ordered – gas range and gas furnace)
- Exterior Receptacles: (1) GFI recept and cover
- Interior Receptacles and Switches: white, self contained
- Phone Jack(s): None
- AC: Conduit
WALLS:
- Exterior Wall Construction: 2×4, 16” O.C. spacing
- Exterior Wall Height Sidewall 7’-0”
- Interior Wall Construction: 2×3 studs 24” O.C. (per print)
- Marriage Wall: 2×3 Studs spaced 24” O.C. (per print)
- Wall Coverings: 3/8” paper on gyp
- Wall Coverage at Closets: 3/8” gyp, raw
INTERIOR FEATURES:
- Cabinets: DuraCraft (duracraftcabinets. com)
- Countertops (All): Laminant (TRU Select)
- Backsplash: None
- Closet Shelving: Closet Maid – vinyl wrapped metal
- Refrigerator: 18 CF
- Dishwasher
- Range: Electric, Gas optional
- Range Hood: 30”, 100 cfm min, vent through sidewall
- Island in Kitchen: Standard (model specific)
COLOR SCHEME:
- TRU Select
THERMAL (INSULATION AND WINDOW SPECS):
- Zone III (standard) Floor: R-22 w/ Wrapped Duct work, Wall: R-13, Ceiling: R-33
