Liddleville

Standard Features

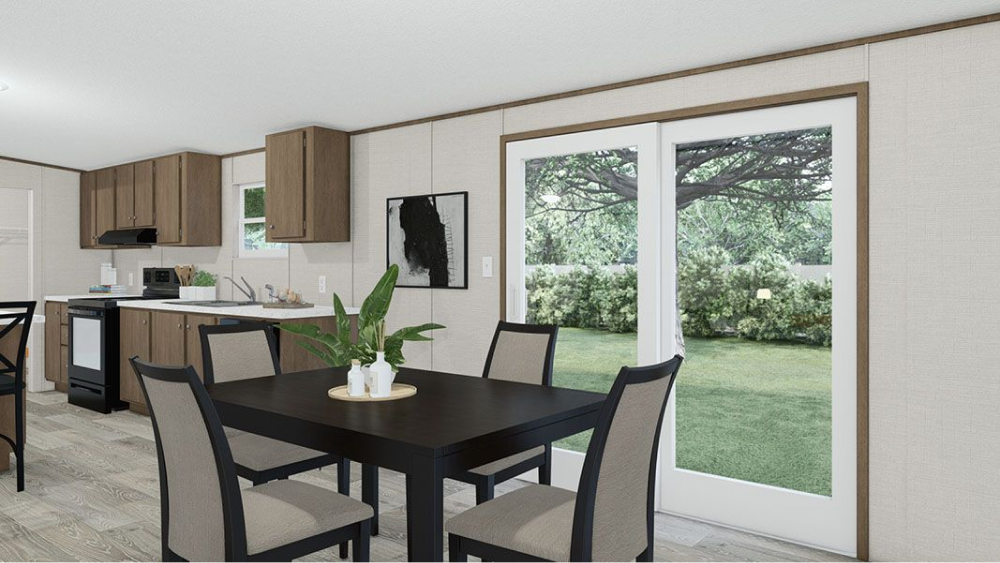

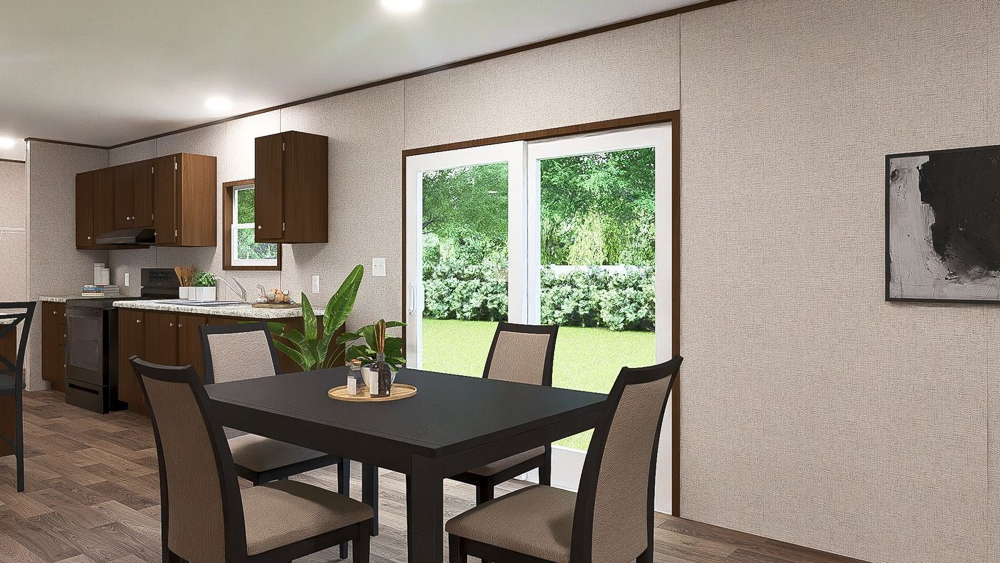

Please note: A sliding glass door has been added to all TRU models and the front door may be relocated. Please contact a Housing Consultant for more details.

GENERAL:

• HUD Code
• 20 lb. Roof Load Std., 30 psf optional
• Wind Zone I Standard (Wind Zone 2 optional)
• Thermal Zone 3 Standard

FRAME:

• I Beam: 12”, 10” or 8” model specific
• Outriggers: 96” spacing, recessed 10” (approx)
• Crossmembers: 96” spacing
• Header (Front/Rear): Flush, not recessed
• Axles: Spread (no equalizers) overslung mounted
• Brake Axles: Two, except where more are mandatory by state DOT
• Hitch Beam: 10” or 8” detatchable hitch (model specific)

FLOOR:

• Joists: 2×6 / 16” O.C.
• Linoleum throughout: TRU Select
• Decking: 19/32” 4×8 OSB T&G

EXTERIOR (7’-0” SIDEWALLS):

• Smart Panel: Standard
• House Wrap: ThermoPly Structural Sheathing
• Exterior Faucet
• Ice Dam Protection

WINDOWS AND DOORS:

• Front door: In Swing Door w/ Storm
• Rear door: Out swing 34” x 76” Blank, no storm
• Interior doors: 6 Panel
• Windows: Lux Argon Gas Low-E Windows, size per prints

ROOF / CEILING:

• Shingles: 25 Yr. 3 Tab
• Trusses: 24” O.C. spacing
• Sheathing: 7/16” OSB
• Insulation: Blown Fiberglass
• Ceiling: Textured
• Ceiling Slope: Vault/Flat Ceiling
• Attic Ventilation: Static Vents

PLUMBING:

• Rheem® Hybrid Heat Pump Water Heater
• Kitchen Sink: Stainless Steel, dbl bowl
• Pfister® Metal Faucets
• Master Bath: 54” Garden Tub ABS Plastic Tub
• Hall Bath: 54” ABS Plastic Tub
• Whole House Water Shut Off
• Pex Plumbing with Oeitiker Plumbing Clamps

HVAC:

• Heat: Electric Furnace (gas optional)
• Ductwork: Metal duct
• Thermostat: Ecobee® Smart Thermostat

ELECTRICAL:

• Load Center: 200 amp
• (100 amp allowed when gas option ordered – gas range and gas furnace)
• LED Light Bulbs-Installed Through-out
• Additional Space in Panel Box for Double Pole Breaker for Solar Equipment
• One-inch Electrical Conduit installed from below the Home to Panel Box for Solar Wiring
• Exterior Receptacles: (1) GFI recept and cover
• Interior Receptacles and Switches: white, self contained
• Phone Jack(s): None
• AC: Conduit
• Dehumidifier Ready
• Whole House Ventilation Fan

WALLS:

• Exterior Wall Construction: 2×4, 16” O.C. spacing
• Exterior Wall Height Sidewall 7’-0”
• Interior Wall Construction: 2×3 studs 24” O.C. (per print)
• Marriage Wall: 2×3 Studs spaced 24” O.C. (per print)
• Wall Coverings: 3/8” paper on gyp
• Wall Coverage at Closets: 3/8” gyp, raw

INTERIOR FEATURES:

• Cabinets: DuraCraft (duracraftcabinets. com)
• Countertops (All): Laminate (TRU Select)
• Backsplash: None
• Closet Shelving: Closet Maid – vinyl wrapped metal
• ENERGY STAR® Rated: Refrigerator: 18 CF, and Dishwasher (if ordered)
• ENERGY STAR® Rated: Frigidaire® Glass Top Range, Gas optional
• Range Hood: 30”, 100 cfm min, vent through sidewall

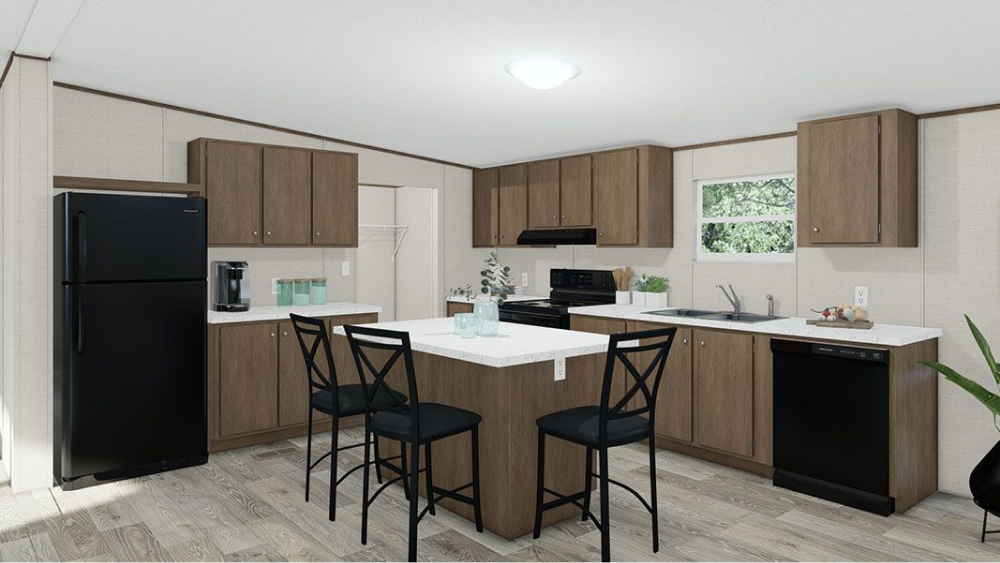

• Island in Kitchen: Standard (model specific)

COLOR SCHEME:

• TRU Select

THERMAL (INSULATION AND WINDOW SPECS):

• Zone III (standard) Department of Energy Upgraded insulation: R-22 w/ Wrapped Ductwork, Wall: R-13, Ceiling: R-33
