Sandspring | 2 Beds · 1 Bath · 765 SqFt
The mobile home model Sandspring has 2 Beds and 1 Bath. This 765 square foot Single Wide HUD Manufactured Homes is available for delivery in
Arizona, Utah, Nevada, New Mexico & Colorado. *Not available for shipment to California.
Sandspring 3D Floor Plan
Sandspring Virtual Tour

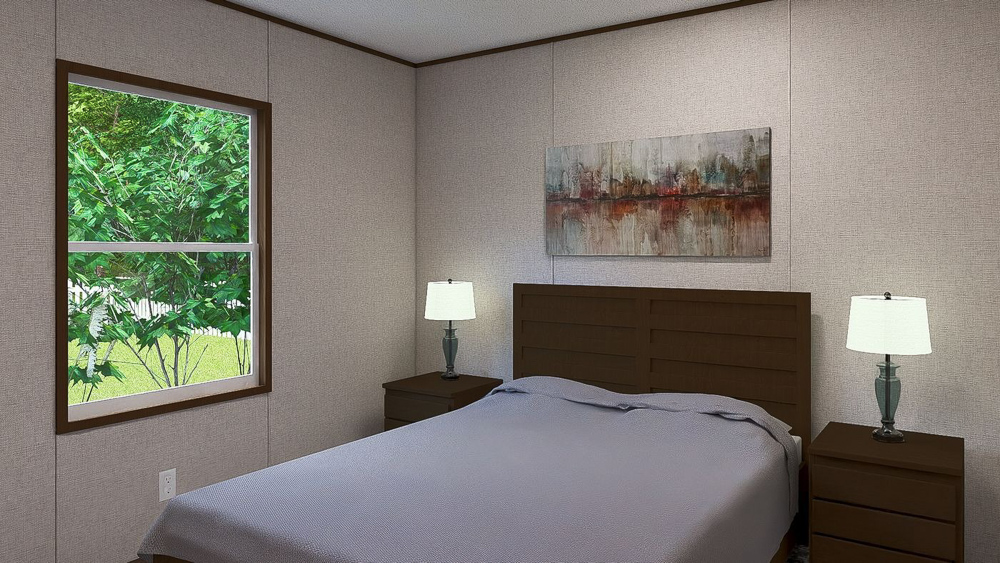

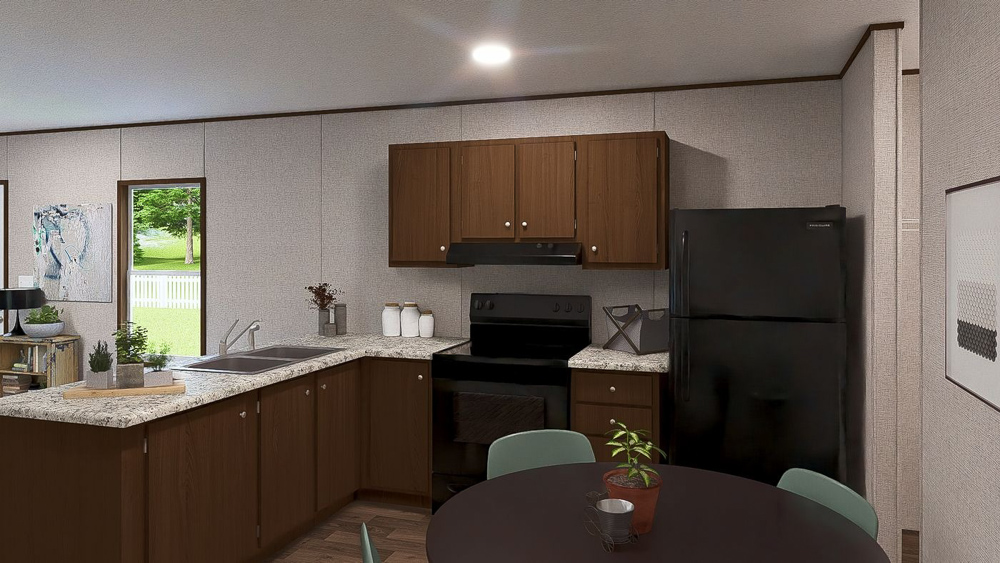

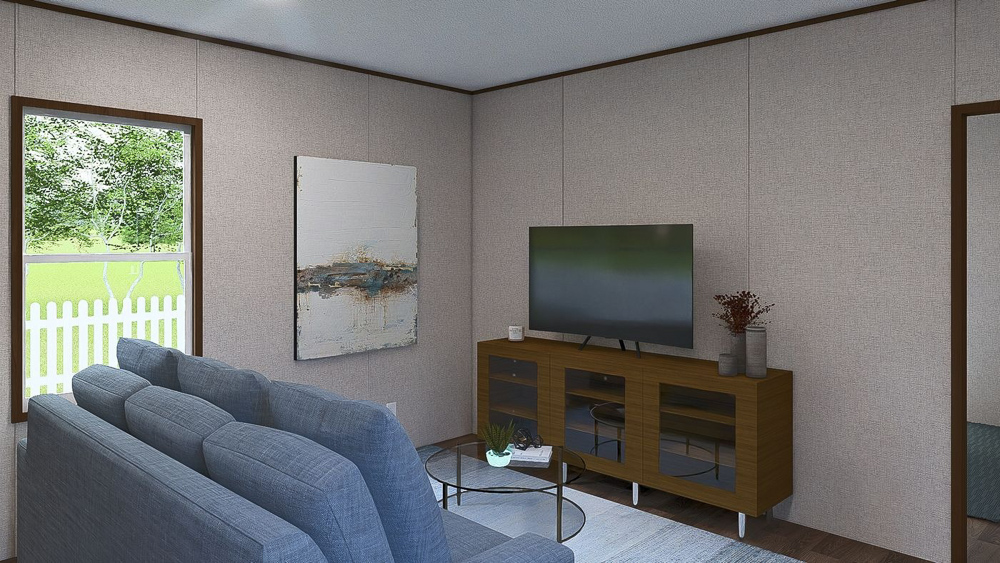

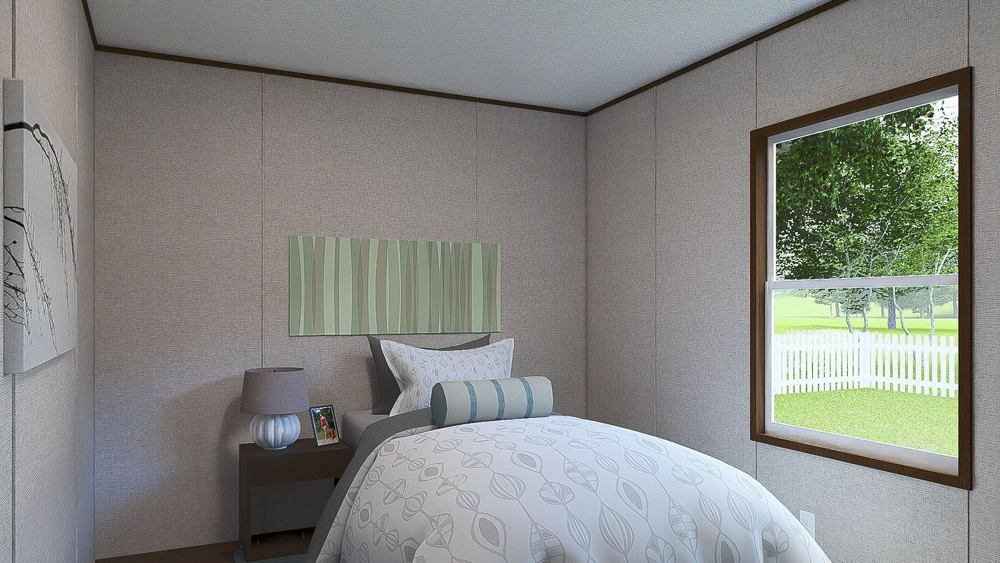

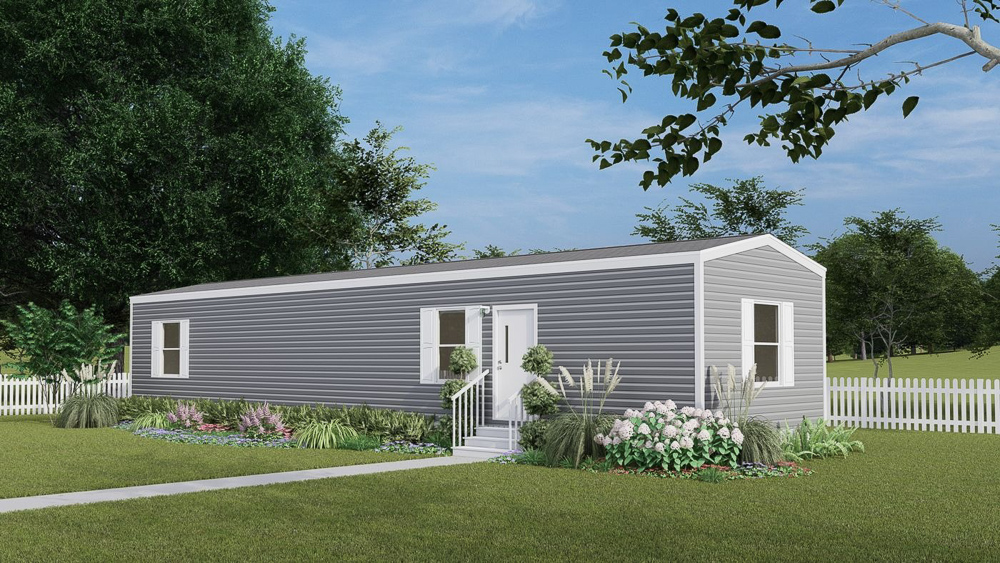

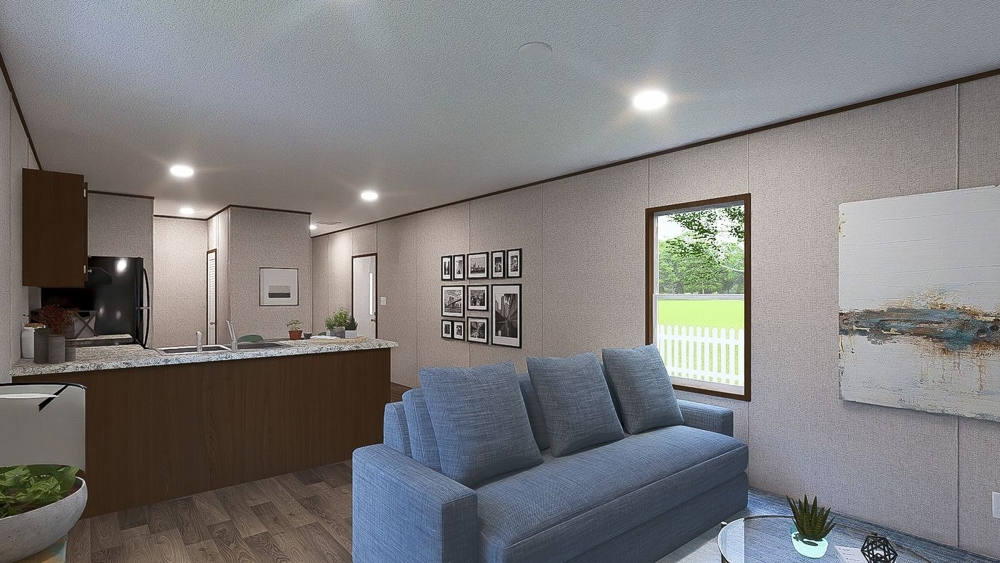

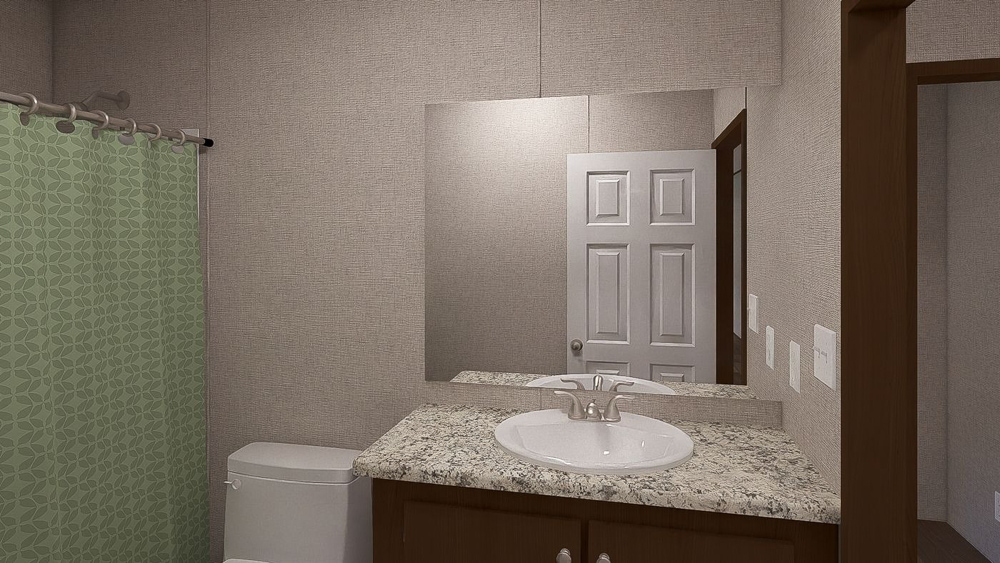

Sandspring Photo Gallery*
*Photos and renderings are for display purposes only and may contain upgrades and/or aftermarket additions.
Ask your housing consultant about the other great features that come standard on the Sandspring HUD Manufactured Homes or click the links below to view Clayton Color Selections, Upgrades & Options, and Other Floor Plans!
Sandspring Price Request
The Home Outlet
1-800-965-2987
By providing my phone number to The Home Outlet, I agree and acknowledge that The Home Outlet may send text messages to my wireless phone number for any purpose. Message and data rates may apply. Message frequency will vary, and you will be able to Opt-out by replying “STOP”. For more information on how your data will be handled, please visit our Privacy Policy.
Standard Features
The Sandspring is part of the TRU Homes Singlewides Series
GENERAL:
- HUD Code
- 20 lb. Roof Load Std., 30 psf optional
- Wind Zone I Standard (Wind Zone 2 optional)
- Thermal Zone 3 Standard
FRAME:
- I Beam: 12” or 10” model specific
- Outriggers: 96” spacing
- Crossmembers: 96” spacing
- Header: (Front/Rear) Flush, not recessed
- Axles: Spread (no equalizers) overslung mounted
- Brake Axles: Two, except where more are mandatory by state DOT
- Hitch Beam: 8” Detachable Hitch
FLOOR:
- Joists: 2×6 / 16” O.C.
- Linoleum throughout: TRU Select
- Decking: 19/32” 4×8 OSB T&G
EXTERIOR (7’-0” SIDEWALLS, 7’-0” ENDWALLS):
- Smart Panel: Standard
- House Wrap: ThermoPly Structural Sheathing
- Exterior Faucet
- Ice Dam Protection
WINDOWS AND DOORS:
- Front door: In Swing Door w/ Storm
- Rear door: Out Swing 9-Lite Door
- Interior doors: 6 Panel
- Windows: Lux Argon Gas Low-E Windows, size per prints
ROOF / CEILING:
- Shingles: 25 Yr. 3 Tab
- Trusses: 24” O.C. spacing
- Sheathing: 7/16” OSB
- Insulation: Blown Fiberglass
- Ceiling: Textured
- Ceiling Slope: Vault/Flat Ceiling
- Attic Ventilation: Static & Ridge Vents
PLUMBING:
- Rheem® Hybrid Heat Pump Water Heater
- Kitchen Sink: Stainless Steel, dbl bowl
- Pfister Metal Faucets
- Master Bath: 54 ABS Plastic Tub
- Hall Bath: 54 ABS Plastic Tub
- Whole House Water Shut Off
- Ice Maker Ready
- Pex Plumbing with Oeitiker Plumbing Clamps
HVAC:
- Heat: Electric (gas optional)
- Ductwork: Metal duct
- Thermostat: Ecobee® Smart Thermostat
ELECTRICAL:
- Load Center: 200 amp
- (100 amp allowed when gas option ordered – gas range and gas furnace)
- LED Light Bulbs-Installed Through-out
- Additional Space in Panel Box for Double Pole Breaker for Solar Equipment
- One-inch Electrical Conduit installed from below the Home to Panel Box for Solar Wiring
- Exterior Receptacles: (1) GFI recept and cover
- Interior Receptacles and Switches: White, self contained
- Phone Jack(s): None
- AC: Conduit
- Dehumidifier Ready
- Whole House Ventilation Fan
WALLS:
- Exterior Wall Construction: 2×4, 16” O.C. spacing
- Ext. Wall Height Sidewall 7’-0”, Endwall 7’-0”
- (combo vault/flat ceiling, per prints)
- Interior Wall Construction: 2×3, 24” O.C. spacing (per print)
- Wall Coverings: 3/8” paper on gyp
- Wall Coverage at Closets: 3/8” gyp, raw
INTERIOR FEATURES:
- Cabinets: DuraCraft (duracraftcabinets. com)
- Countertops (All): Laminante (TRU Select)
- Backsplash: None
- Closet Shelving: Closet Maid – vinyl wrapped metal
- Utility Shelving: above washer/dryer
- ENERGY STAR® Rated: Refrigerator: 18 CF, and Dishwasher (if ordered)
- ENERGY STAR® Rated: Frigidaire® Glass Top Range, Gas optional
- Range Hood: 30”, 100 cfm min, vent through sidewalll
COLOR SCHEME:
- TRU Select
THERMAL (INSULATION AND WINDOW SPECS):
- Zone III (standard) Department of Energy Upgraded insulation: Floor: R-22 w/ Wrapped Ductwork, Wall: R-13, Ceiling: R-33
