Hawley | 4 Beds · 2 Baths · 1475 SqFt
The mobile home model Hawley has 4 Beds and 2 Baths. This 1475 square foot Double Wide HUD Manufactured Homes is available for delivery in
Arizona, Utah, Nevada, New Mexico & Colorado. *Not available for shipment to California.

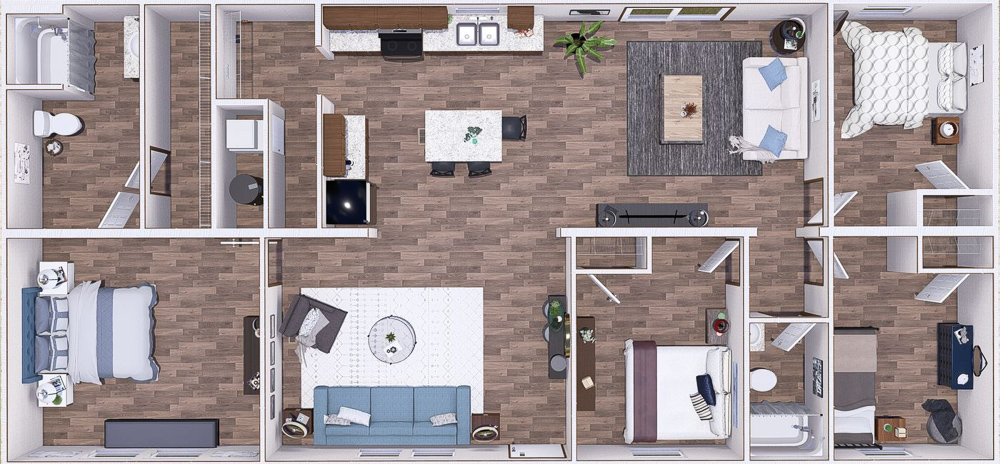

Hawley 3D Floor Plan
Hawley Virtual Tour

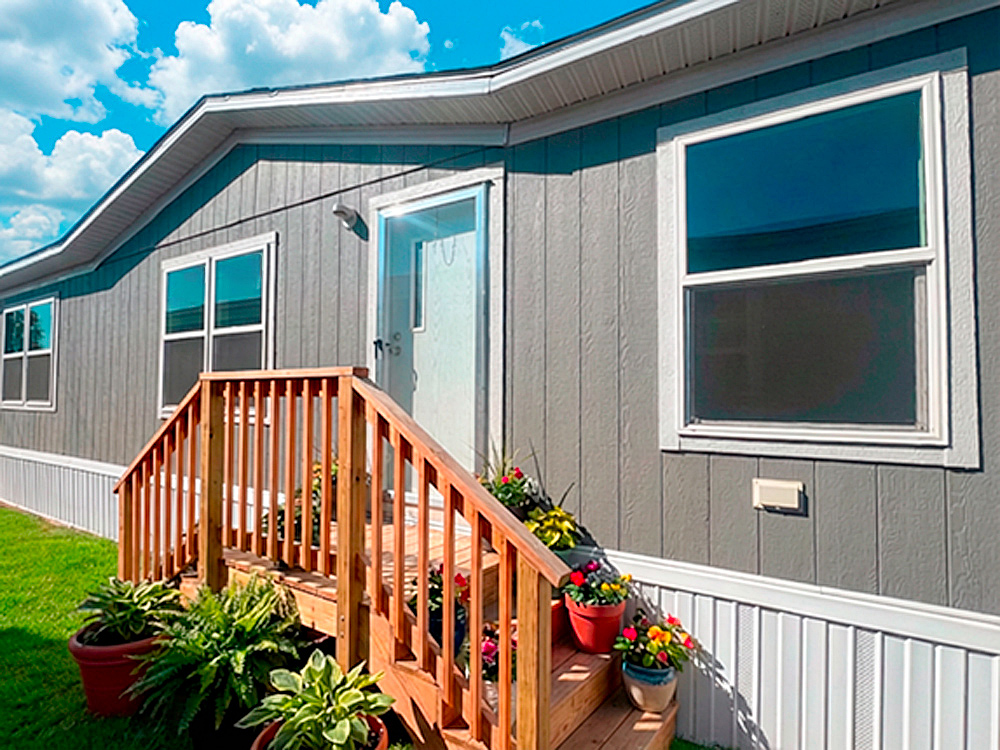

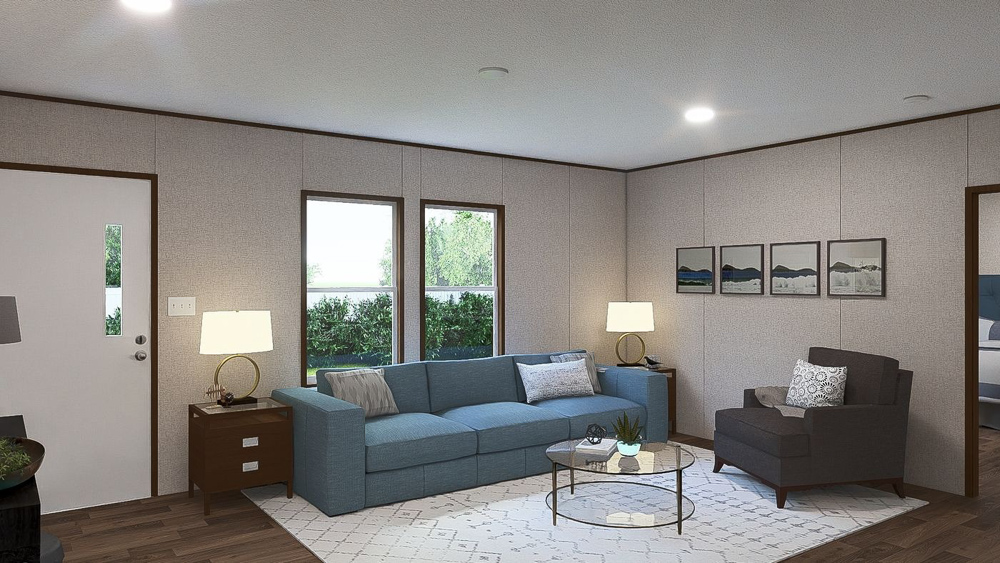

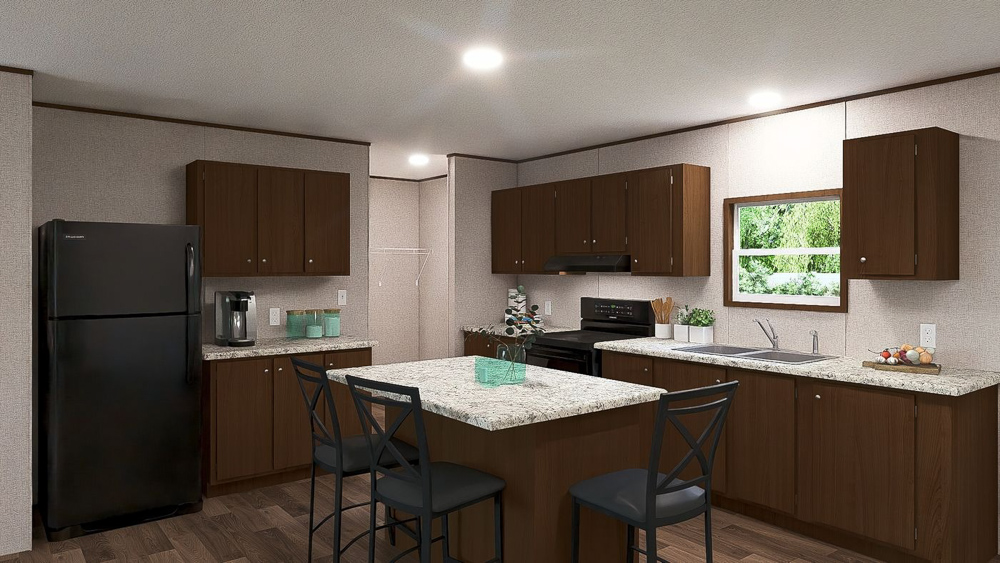

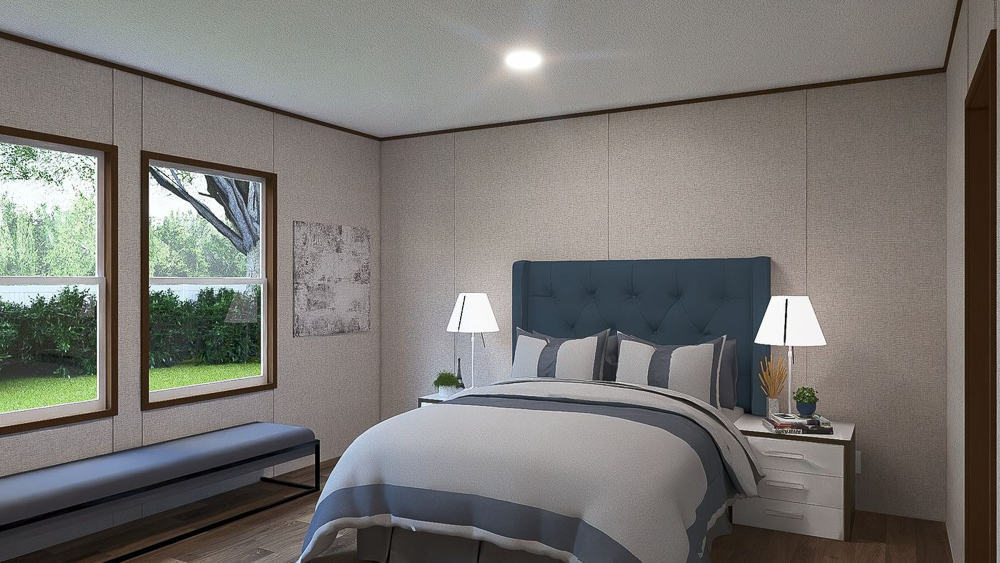

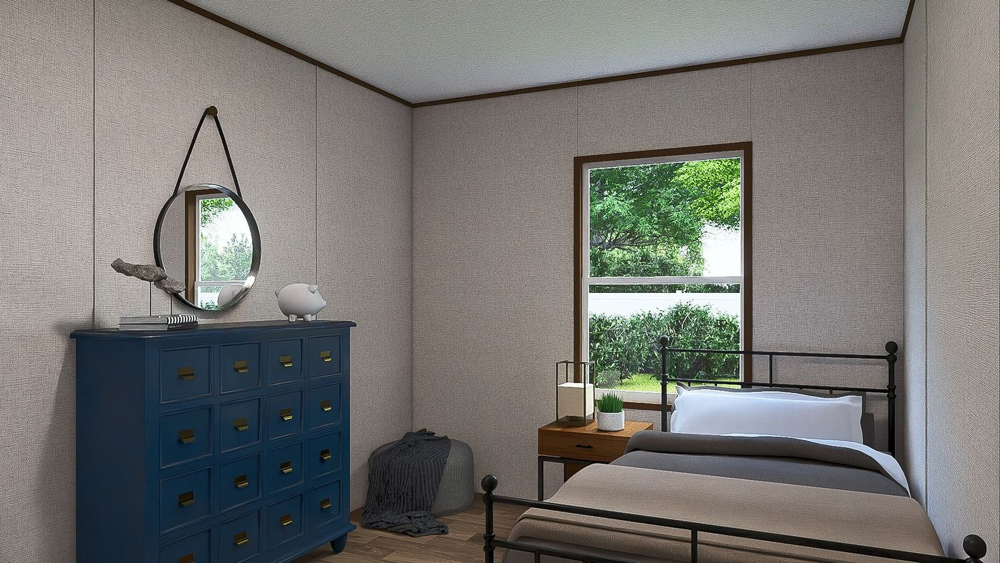

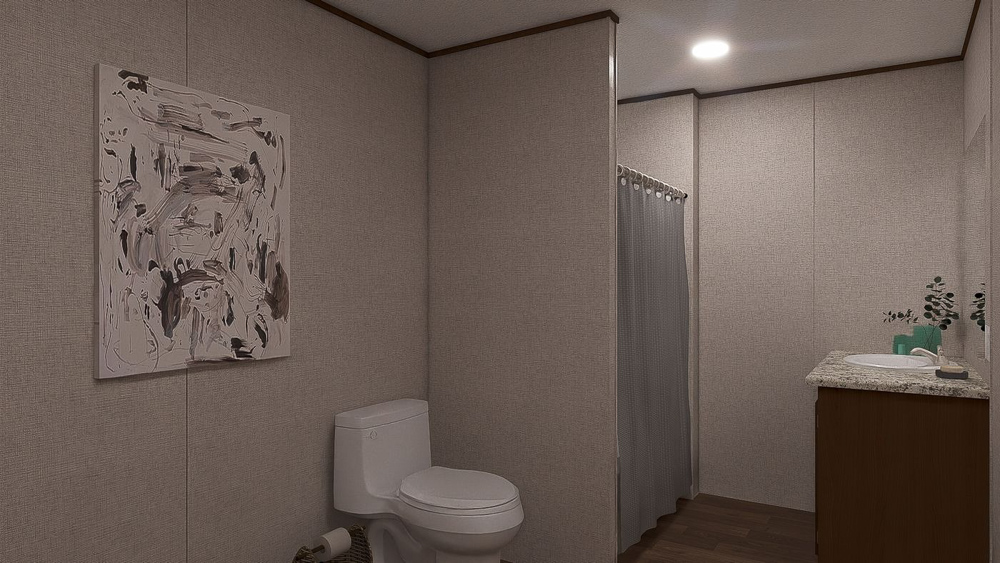

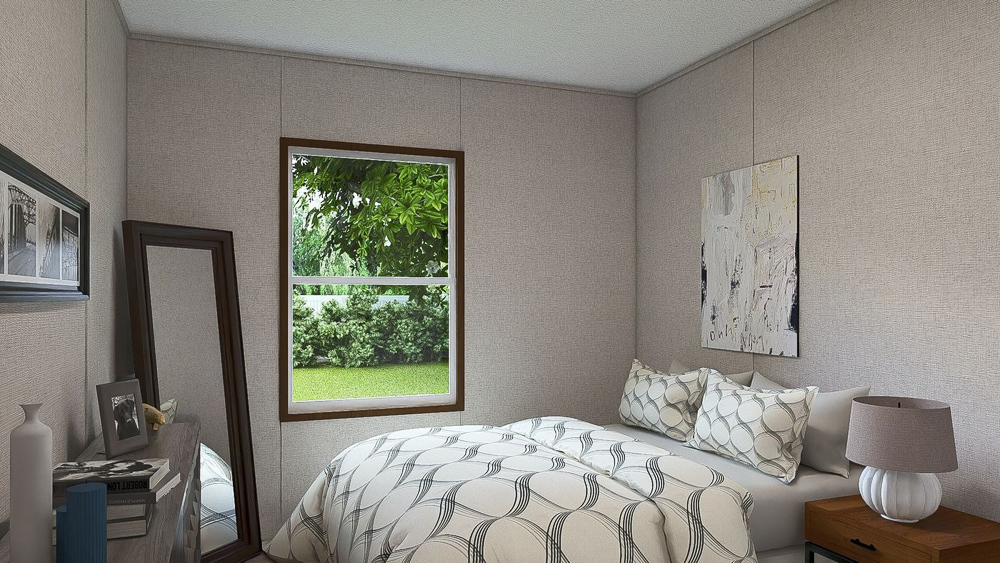

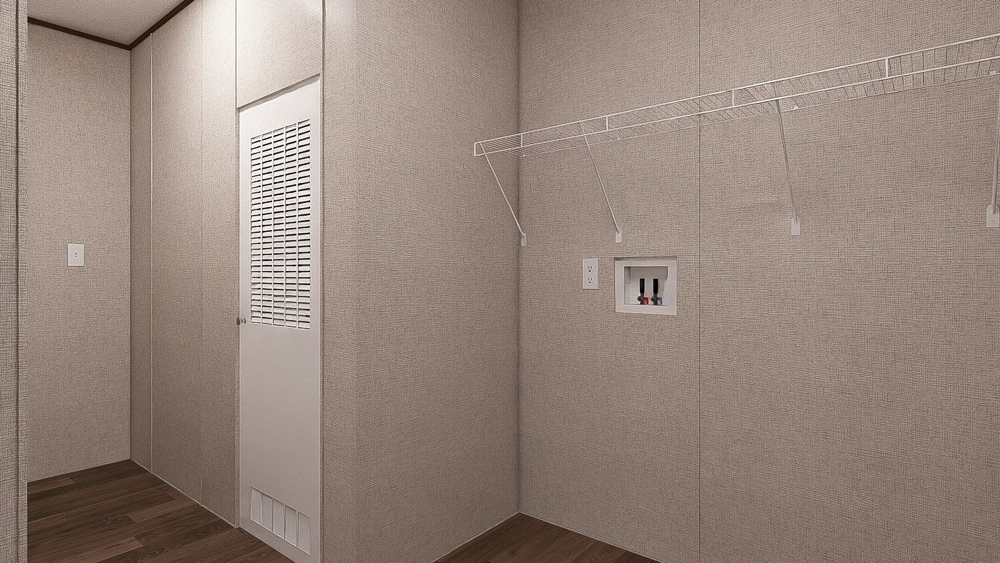

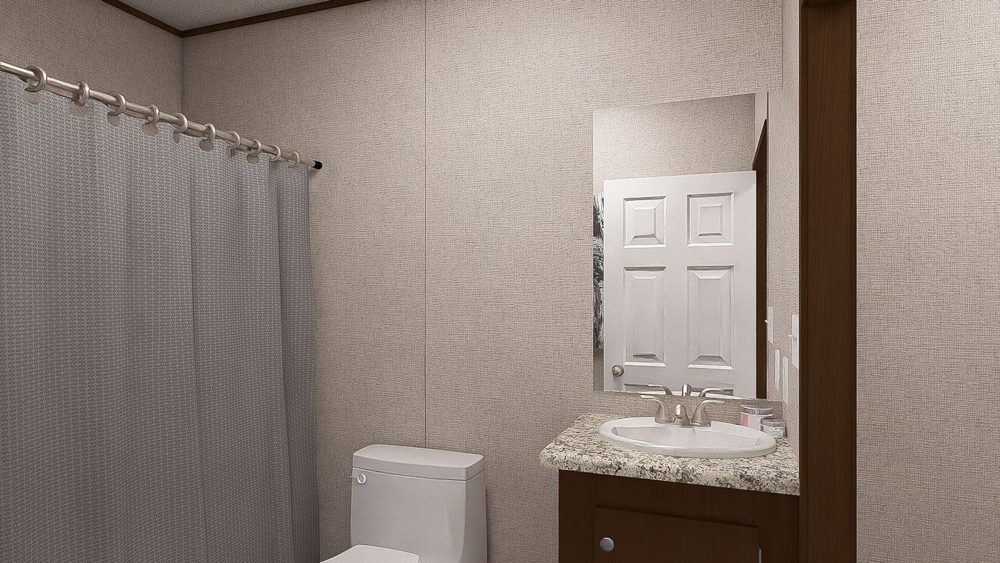

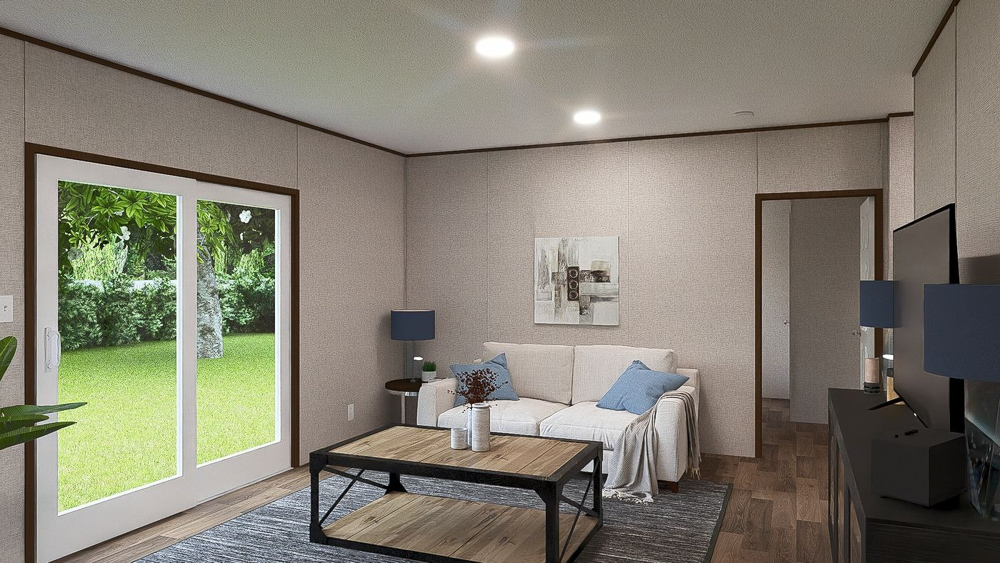

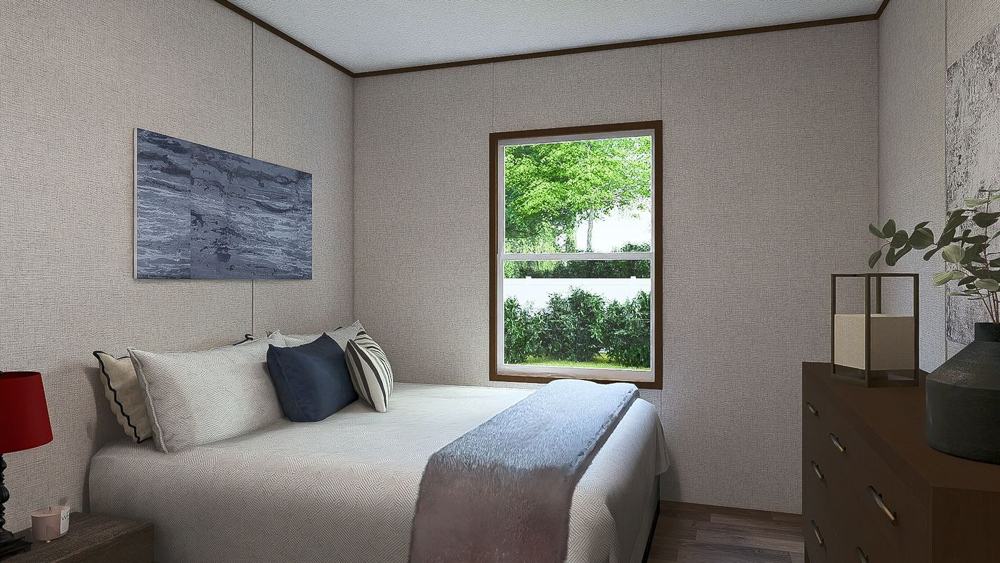

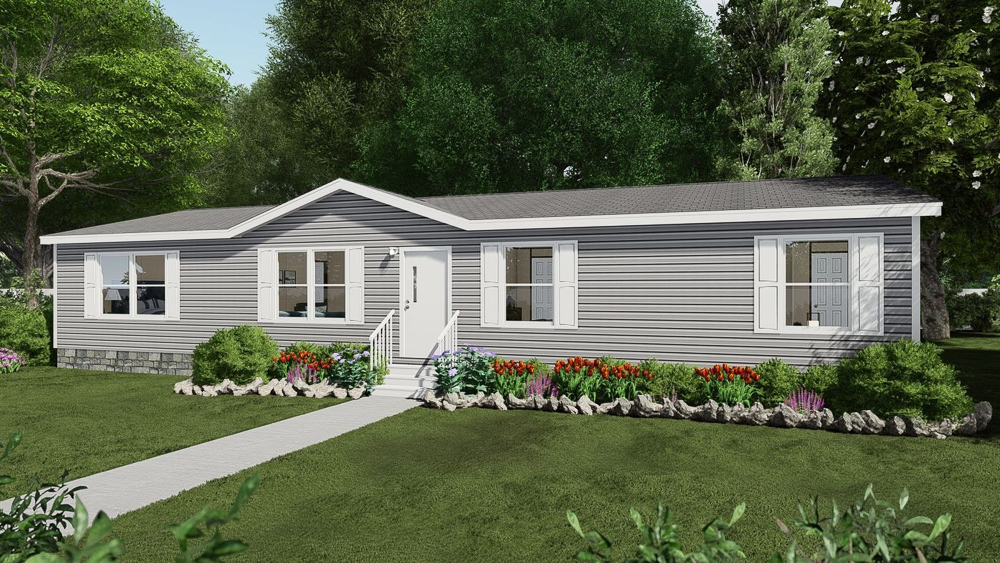

Hawley Photo Gallery*
*Photos and renderings are for display purposes only and may contain upgrades and/or aftermarket additions.
Ask your housing consultant about the other great features that come standard on the Hawley HUD Manufactured Homes or click the links below to view Clayton Color Selections, Upgrades & Options, and Other Floor Plans!
Hawley Price Request
The Home Outlet
1-800-965-2987
Standard Features
The Hawley is part of the TRU Origin Homes Doublewides Series
Please note: A sliding glass door has been added to all TRU Doublewide models and the front door may be relocated. Please contact a Housing Consultant for more details.
GENERAL:
- HUD Code
- 20 lb. Roof Load Std., 30 psf optional
- Wind Zone I Standard., Zones II + III optional
- HUD Thermal Zone 3 Standard
FRAME:
- I – Beam: 12” or 10” model specific
- Outriggers: 96” spacing
- Crossmembers: 96” spacing
- Header: (Front/Rear) Flush, not recessed
- Axles: Spread (with equalizers) overslung mounted
- Brake Axles: Two, except where more are mandatory by state DOT
- Hitch Beam: 8” Detachable Hitch
FLOOR:
- Joists: 2×6 / 16” O.C.
- Vinyl: Challenger Linoleum by Shaw® throughout home
- Decking: 19/32” 4×8 OSB T&G
EXTERIOR (8’-0” SIDEWALLS):
- Vinyl Siding: Standard
- Sheathing: Wind Zone I – Thermoply Structural Sheathing
- Exterior Faucet
- Shutters: Front Door Side Windows
WINDOWS AND DOORS:
- Front door: Steel front door with Storm
- Rear door: Standard Sliding Glass Door *All Models except Maple
- Interior doors: White 6-Panel Door
- Windows: LUX Thermal Pane Low E Vinyl, size per prints
ROOF / CEILING:
- Shingles: 25 year – 3 tab
- Trusses: 24” O.C. spacing
- Sheathing: 7/16” OSB
- Insulation: Blown Fiberglass
- Ceiling: Textured
- Ceiling Slope: Flat Ceiling
- Attic Ventilation: Ridge Vents
PLUMBING:
- Water Heater: 40 gallon Rheem® electric + dual element
- Kitchen Sink: Stainless Steel, double bowl
- Lavatory Sinks: Plastic
- Faucets: Pfister® Metal Faucets
- Master Bath: 54” ABS Plastic Tub option/Shower Standard
- Hall Bath: 54” ABS Plastic Tub
- Whole House Water Shut Off
- Ice Maker Ready
- Dehumidifier Ready
HVAC:
- Heat: Carrier® Electric (gas optional)
- Ductwork: Metal duct wrapped with insulation
- Programmable Thermostat
ELECTRICAL:
- Load Center: 200 amp (100 amp allowed when gas option ordered – gas range and gas furnace)
- Exterior Receptacles: (1) GFI recept and cover
- Interior Receptacles and Switches: White, self contained
- Communication Plugs Standard
- AC: Conduit
- LED Can Lights
- Wire & Brace for Ceiling Fan in Primary Bed and Living Area
WALLS:
- Exterior Wall Construction: 2×4, 16” O.C. spacing
- Ext. Wall Height Sidewall 8’-0”, Endwall 8’-0”
- Interior Wall Construction: 2×3, 24” O.C. spacing (per print) – Wall Coverings: 3/8” paper on gyp
- Wall Coverage at Closets: 3/8” gyp, raw
INTERIOR FEATURES:
- Lined Cabinets/Centershelf/Base: DuraCraft® (duracraftcabinets.com)
- Box-Built Cabinet Construction
- Countertops (All): Wilsonart® Laminant (TRU Select)
- Rolled Countertops
- Backsplash: None
- Closet Shelving: ClosetMaid® – vinyl wrapped metal
- Utility Shelving: above washer/dryer
- Refrigerator: Frigidaire® 18’ Top Freezer
- Range: Frigidaire® 30” Electric/Gas Option
- Frigidaire® 24” Dishwasher Optional
- Range Hood: 30”, 100 cfm min, vent through sidewall
COLOR SCHEME:
- TRU Select
OPTIONS AVAILABLE:
- Wind Zone II, Wind Zone III
- Ice Dam Protection
- Gas Option: Range and Furnace only (100 or 200 amp)
- 30# roof load, 16” O.C. Trusses
- OSB Wrap
- Smart Panel Siding
- Garden Tub
- Insulation
- Dishwasher
